Product Description
Slimline 30 Watts LED Floodlight 3000lm Black Aluminum IP66 Waterproof
Characteristics of 30 Watts LED Floodlight:
• Efficiency: 100lm/W.
• Luminous flux: 3000lm for 30 watts.
• Dimension: L140xW112xW25mm.
• Surge protection: 2KV.
• Shock-proof: IK07.
• The LED floodlight can have intelligent function motion sensor with remote.
• Adopting high lumen SMD2835 San an brand LED chip.
• 20w, 30w, 50w, 100w, 150w and 200w with this type are available.
• The model can also have colorful changing smart RGBCW APP smart function, and optional motion sensor.
• Warranty is 2 years.
• Clear tempered glass with high light transmission rate.
• LED junction temperature less than 50 degree.
• Use popular driverless circuit AC solution, stable work and same light efficiency.
Parameters of 30 Watts LED Floodlight:
| Product Name |
Slim LED Flood Lights |
| Part No. |
SU-FAK30W |
SU-FAK50W |
SU-FAK100W |
| Rated Power |
30W |
50W |
100W |
| Dimension (mm) |
140x112x25 |
196x149x25 |
270x206x30 |
| Input Voltage |
AC110V, 220V, 50/60Hz |
| Light Source |
SMD2835 |
| Driver |
DOB AC Driver |
| Light Efficiency |
90-100lm/W |
| CCT |
2700k, 3000k, 4500k, 5500k, 6500k |
| Material |
Die-casting Aluminum |
| Body Material |
Tempered Glass |
| Surge Protection |
2KV |
4KV |
| Protection |
IP66 , IK08 |
| Housing Color |
Black, Grey |
| CRI |
>0.8 |
| PF |
>0.9 |
| Beam Angle |
120° |
| Work Temperature |
-25 ~ 50 Deg. |
| Warranty |
2 Years |
| Approval |
CE ROHS |

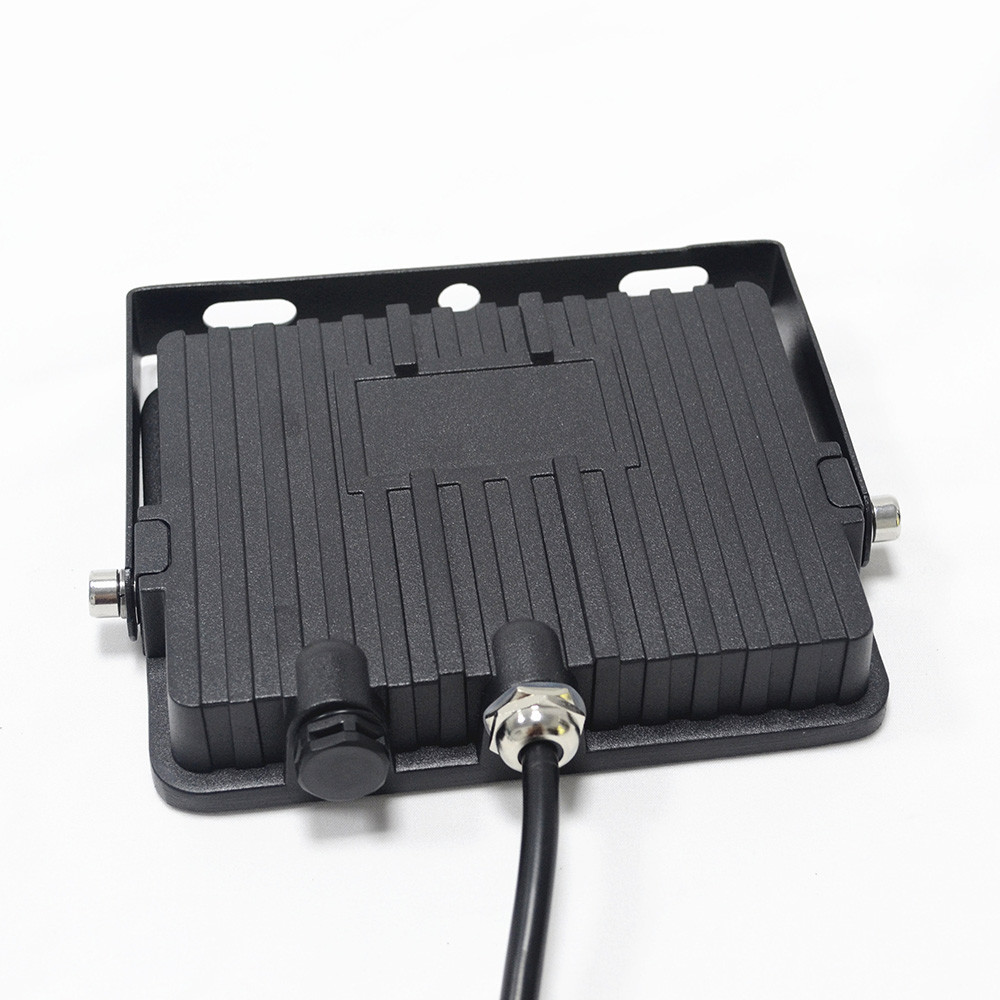

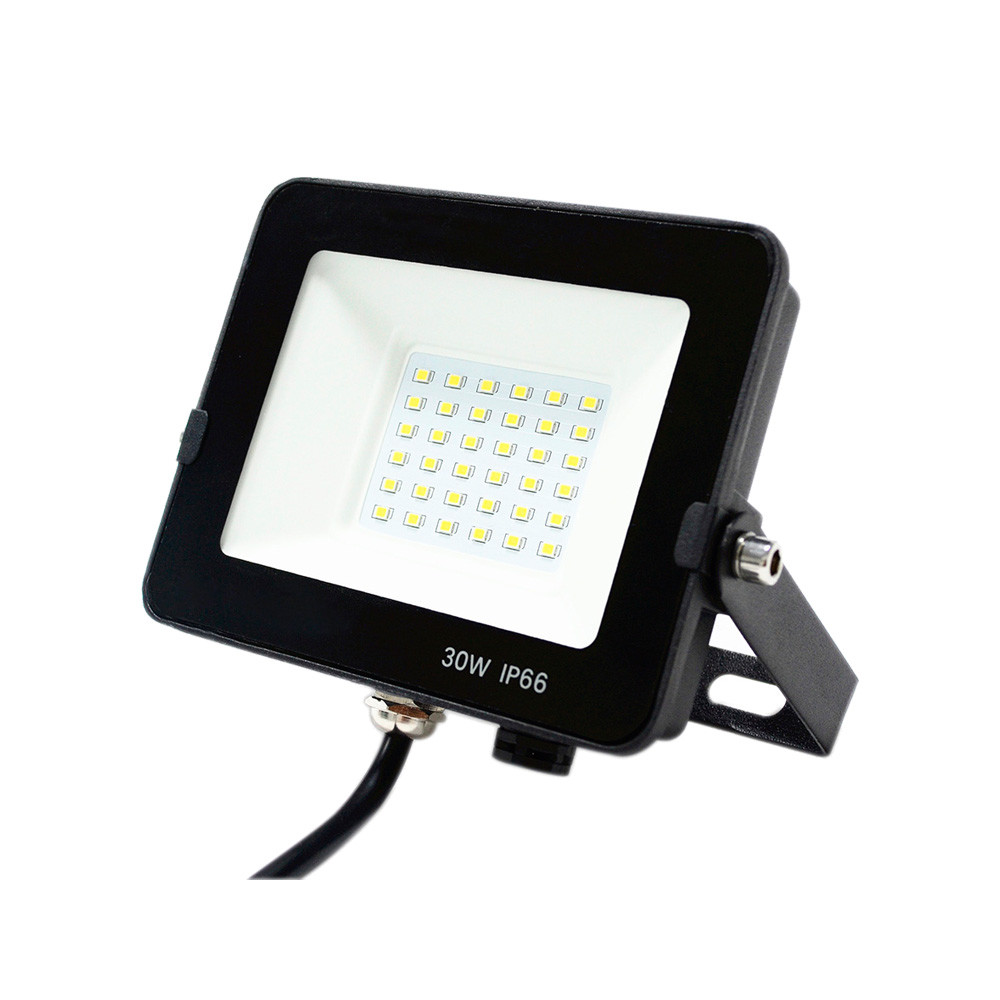

Product show of 30 Watts LED Floodlight:
Installations of 30 Watts LED Floodlight:
Applications of 30 Watts LED Floodlight:
Frequent Questions of 30 Watts LED Floodlight:
1. What is the MOQ of this model?
Re: MOQ is 100PCS. But for trial order, 1pc or mixed pieces are warmly welcome.
2. What driver includes it inside?
Re: It is DOB linear AC solution, so no driver inside. But its working is very nice and stable. No worries about working and efficiency.
3. How about the wires?
Re: The light comes with 3P cable. Red +, Black -, and Yellow-green Ground.
4. Can this light be dimmable?
Re: No, this model can't be dimmable, but we have dimmable type for your application.
5. Can I have this model with PIR motion sensor?
Re: Yes, this 30 watts led floodlight can make PIR motion sensor and motion sensor with remote.
6. Do you have customised services like logo, package or sticker?
Re: Yes, absolutely. We welcome to OEM/ODM buyers for logo, package and sticker. Just tell us your idea and send us the diagram. Everything can be nicely finished for you.
7. How to guarantee the quality?
Re: 100% return or replaced if any faulty happens. We ensure the lights must have quality control test before shipping.
8. How can I receive the sample?
Re: Normally, <10pcs, they can be shipped within 3 days. >500pcs, the lead time is 10-15 days.
