Product Description
Sport Stadium Lighting LED Floodlight 150 Watt Waterproof IP66 120 Degree
Quick Detals of LED Floodlight 150 Watt:
• Product type: Flood Lights.
• SKU: SU-TGS150W.
• Work voltage: AC100-240V, 50/60Hz.
• Rated power: 150 watts.
• Real power: 150W.
• Luminous flux: 15000lm/W
• Size: L267*W229*H30mm.
• Color: 3000K, 4500K, 6500K or customised.
• Body color: grey color.
• Housing material: die-casting aluminum.
• Cover material: tempered glass.
• Waterproof protection: IP66.
• Shock-proof level: IK08.
• Surge protection: 2KV.
• LED junction temperature less than 50 degree.
• Optional functions: PIR motion sensor, radar sensor or customised.
• Accpet logo customised.
• Cable: 3*0.75 PVC wire 100cm (39.37inch).
• Warranty is 3 years.
Characteristics of LED Floodlight 150 Watt:
• Super bright chips and low light failure
The built-in upgraded 196pcs super bright LED smd chips can produce 15000 lumens high output brightness, which is much more brighter than other light sources.
• Brightness Upgraded
Powered by high-quality 2835 SMD LED chips, increased number of light beads, better brightness and large illumination.
• Thickened Aluminum
Superior & thickened ADC12# die-casting aluminum with corrosion-proof, shock-proof, dust-proof and weather-proof with faster heat sinking to keep long lifespan.
• DOB driver mode
High quality electrical components to make DOB AC solution with high work efficiency, PF>0.9, famous brand drivers customised. And this model can also have built-in driver choosed if needed.
• Waterproof Upgrated
Rain-proof & water-proof protection IP66 upgraded, suitable for wet surroundings.
• High Quality Tempered Glass Cover
High-quality tempered glass cover with 120 degree beam angle, high hardness and high light transmission up to >98%.
• Various wattages optional
The model can get 10W, 20W, 30W, 50W, 100W, 150W, 200W and 300W available. And we accept customization according to your requests.
• Fire-proof cable
Adopting fire-proof PVC wire 3*0.75 with 100cm long.
Descriptions of LED Floodlight 150 Watt:
A new smart LED floodlights has been come out. It is color temperature dimmable function with 3 phases (3000K, 4000K and 6500K) operated by key switch (or wall switch).
Parameters of LED Floodlight 150 Watt:
| Product Name |
DOB LED Floodlights |
| Part No. |
SU-TGS50W |
SU-TGS100W |
SU-TGS100W |
| Rated Power |
50W |
100W |
150W |
| Dimension (mm) |
L191*W164*H30 |
L231*W198*H30 |
L267*W229*H30 |
| Input Voltage |
AC100-240V, 50/60Hz |
| Light Source |
SMD 2835 high lumen chip |
| Driver |
DOB driver |
| Light Efficiency |
100lm/W |
| CCT |
3000K, 4000K, 6500K |
| Material |
Die-casting Aluminum |
| Body Material |
Tempered Glass |
| Surge Protection |
4KV |
| Protection |
IP66 , IK08 |
| Housing Color |
Grey (customised) |
| CRI |
>0.7 |
| PF |
>0.9 |
| Beam Angle |
120° |
| Work Temperature |
-25 ~ 50 Deg. |
| Warranty |
3 Years |
| Approval |
CE ROHS |

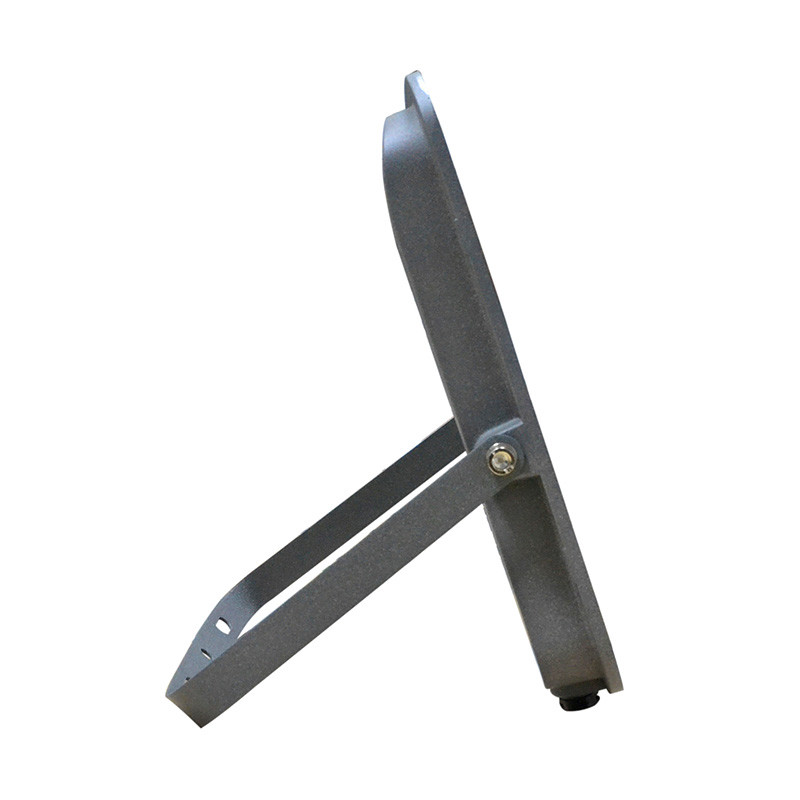

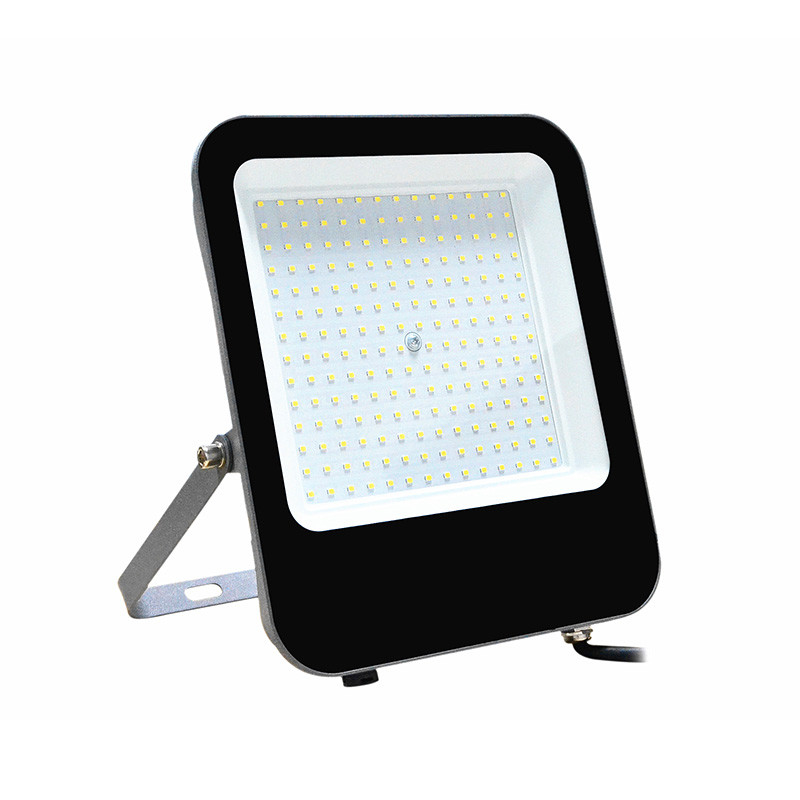

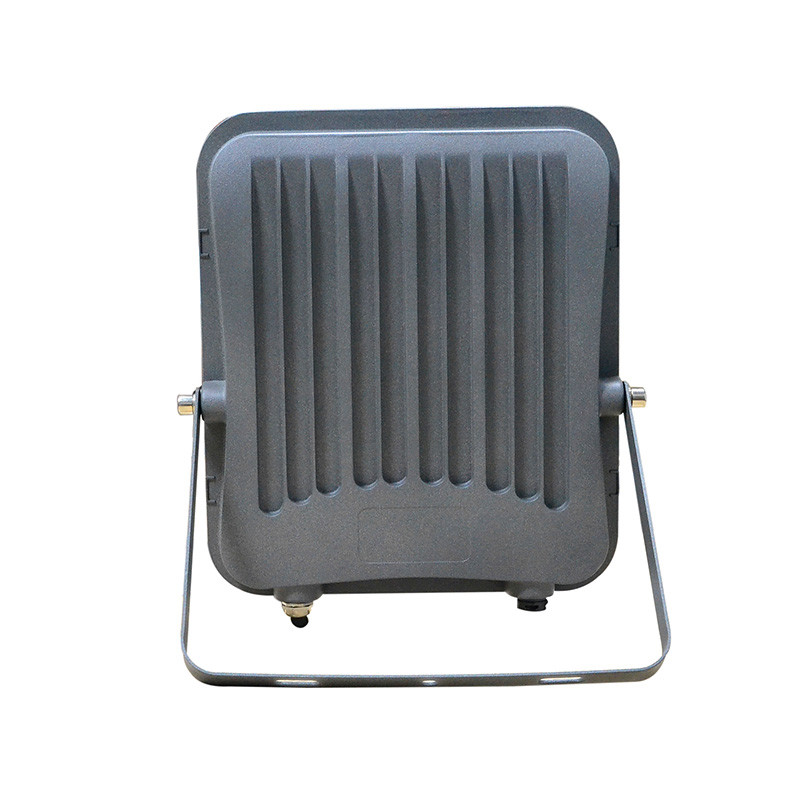

Product show of LED Floodlight 150 Watt:
Color temperatures of LED Floodlight 150 Watt:
Applications of LED Floodlight 150 Watt:
Applications of LED Floodlight 150 Watt:
1. Can I buy 1pc before bulk quantity?
Re: Yes, 1pc sample is welcome, and mixed samples are offered.
2. Is the lamp sufficient power?
Re: Yes, we make sufficient power for this model.
3. How about the wires?
Re: It comes with 3P cables. Red +, Black - and Yellow-green Ground.
4. Do you have stock for this 150w?
Re: We don't have stock for 150W, but we have 30W and 50W in stock.
5. What driver does this LED floodlight 150w include?
Re: The floodlight doesn't include driver. It is DOB solution, low cost and high work efficiency. It is very welcome in the markets, and quality is guaranteed 3 years. No worry about the quality!
6. Is the quality reliable since there is no driver inside?
Re: Yes, absolutely reliable. Presently lots of lamps with linear solution can get good-working and low cost.
7. How will you deal with the faulty?
Re: Firstly, we promise that faulty rate is very very low, because we will test all materials before stocking, and during the production, each course must be tested step by step. Secondly, if any faulty happened, we will replace or refund. Customer's trust is our principle.
